50 Kn Four Point Bending Testing Machine

  • 50 Kn Four Point Bending Testing Machine
  • 50 Kn Four Point Bending Testing Machine
  • 50 Kn Four Point Bending Testing Machine

50 Kn Four Point Bending Testing Machine

    Payment Type: L/C,T/T
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 7 Days
    Packaging: 1> Inner package: dust-proof plastic bag and strength film 2> Outer package: standard export wooden case with pallet 3> Special package: according to buyer's requirements 4
    Productivity: 300 Sets per month
    Brand: Chenda
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 300 sets
    Certificate: CE,SGS
    HS Code: 90248000
    Port: QINGDAO,SHANGHAI,TIANJIN

Basic Info

Model No.: WDW-50

Product Description

Brief Introduction:

WDW-50 Static universal testing machine for medical bone surgical implant is designed and manufactured according to ASTM, ISO,DIN etc standards. It is computer-controlled precision testing machine, Suitable for all kinds of surgical implants such as bone plates, bone screws, spinal implant assembly drawing . Can do all kinds of Mechanical property test as follows:

Four point bending test of bone plate ;

Pull out test of the bone screw;

Tensile and compression tests for spinal implants;

●Tensile test for metal materials
It has high stability as well as high precision, equipped with PC system& printer for graph, test result display, test control as set program, printing & data processing. It is widely used in many field such as industry factories, mineral enterprise and high schools.


Standard :

According To The Standard: GB/T16491-2008 <Electronic Universal Testing Machine >, GB/T228.1-2010Test method for tensile testing of metallic materials at room temperature , ASTM F382 , ASTM F543 and so on .

Host Frame :

●The mainframe is a double-space door structure. The driving principle is that the motor drives the ball screw pair to rotate after decelerating through the reducer system, thus driving the middle beam up and down to complete the test, the transmission is stable and the noise is low.

●Using four guiding optical screws, φ 40 mm high precision ball screw.The high rigid frame is composed of thick beam and base,which can guarantee the frame with excellent longitudinal and transverse rigidity and good overall accuracy.

●Servo motor drive and reducer system without maintenance, can guarantee the accuracy and stability of the beam ,the speed ratio can reach 1: 100000.

●Under the guidance of the internal control precision of 5% of coaxiality, the cross joint can be precisely aligned in axial test, and the linear motion of the beam can be guaranteed, so as to ensure that the influence of the lateral force on the specimen under load is minimal. Thus, better test performance can be obtained.

Controller :

●Force , displacement , deformation measurement resolution up to 1 / 300000 of full scale

●AD sampling frequency can be as high as 300 Hz

Test function introduction

1.Four point bending test of bone plate

Bone Plate Four Point Bending Test

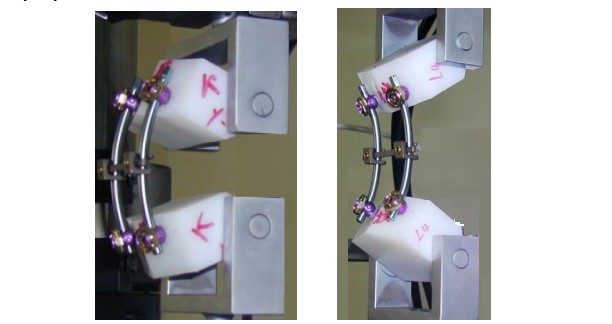

2.Tensile and compression tests for spinal implants:

Tensile Test Of Medical Implant


Technical specification:

Mode

WDW-100

max. test force

100 Kn

Test force testing range

0.4%-100%FS

Testing machine accuracy grade

1/0.5

Accuracy of test force

Better than indication value ±1%(0.5%)

Crosshead displacement

resolution

0.001mm

Large deformation measuring range

2%-100%FS

Large deformation resolution

1/200000

Control system

servo drive controller

Test speed

0.005-500 mm/min

Auto-stop function

1. Maximum capacity overload protection

2.leakage current protection

Adjust speed range

0.005-500 mm/min

Tensile test space

550 mm

Compression test space

800 mm

Standard Attachment

For Your Choice

Tensile Clamping (Flat jaw )mm

0-7,7-14,14-20 for your choice

Tensile Clamping (Round jaw)mm

φ4-φ9,φ9-φ14,φ14-φ20 for your choice

Compression Diameter

φ100 mm

Bending Roller Diameter mm

12

Host type

door structure

Host dimension

840 mm x 600 mm x 1750 mm

Weight

500 kg

Power Supply

220 volts, 3 phase, 60 hertz



Electronic Universal Testing Machine In Our Work Shop

Electronic Universal Testing Machine In Work Shop
